Stainless Steel Pipe for Workstation, Trolley and Lean Rack
Description:

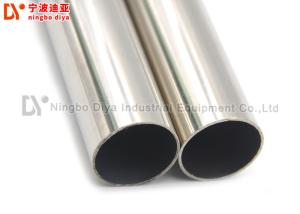

Lean tube, also known as multiple tube, or flexible pipe, is by the high quality cold rolled steel strip after surface treatment, lean pipe with plastic resin coating, surface with PE / / ESD plastic layer, a mix of cladding coating on the inner surface. Of products, is beautiful, wear resistance, colour and lustre is light, rust non-polluting characteristics of standard material of wire rods was 27.8 + / - 0.2 mm in diameter, tube wall plastic layer with PE/ESD plastic, steel tube wall thickness of 0.8 mm, 1.0 mm and 1.2 mm, 1.5 mm
and 2.0 mm standard.
Parameter:
| Category | Type | Specification(mm) | Weight |
| lean pipe | H2808-X | φ28*0.8 | 530 |
| H2810-X | φ28*1.0 | 630 |
| H2812-X | φ28*1.2 | 750 |
| H2815-X | φ28*1.5 | 930 |
| H2820-X | φ28*2.0 | 1200 |
| Name | Lean tube/ Pipe |
| Thickness | 0.8 - 2.0 mm |
| Material | PE |
| Surface treatment | Galvanized |
| Length | 4000mm |
| Shape | Round Shape |
| Outer Diameter | 27.8 - 28.2 mm |
| Usage | Workstation, bench, rack, trolley, production line, cart , etc.
|
Application:
1) Lean Pipe Production Line
2) Lean management table
3) Lean Office Furniture
4) Lean pipe assembly line
5) Lean Warehouse shelves
Feature:
1. Easy to assemble: the assembly is simple and fast, which can reduce the assembly time and improve efficiency.
2. Reuse: nanyue lean pipe can be reused, contributing to the environment and reducing equipment costs.
3. Multi-function: to enrich spare parts to achieve a variety of USES, such as shelves, workstations, turnover vehicles, etc.
4. High quality.Quality of products will be strictly checked and every part or machine are well tested by our Quality Control Dept. to ensure it can works well before packaging.
5. Professional.We are professional conveyor manufacturer.You can purchase almost all kinds of products related to conveyor from us.
